SC Series - Rotary Hoe - 90-170 HP
click image to enlarge

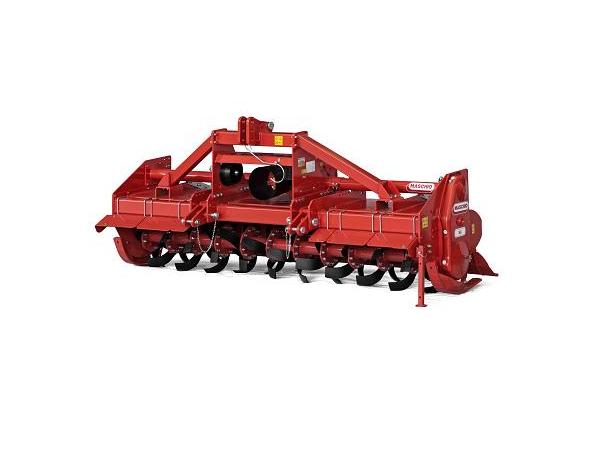

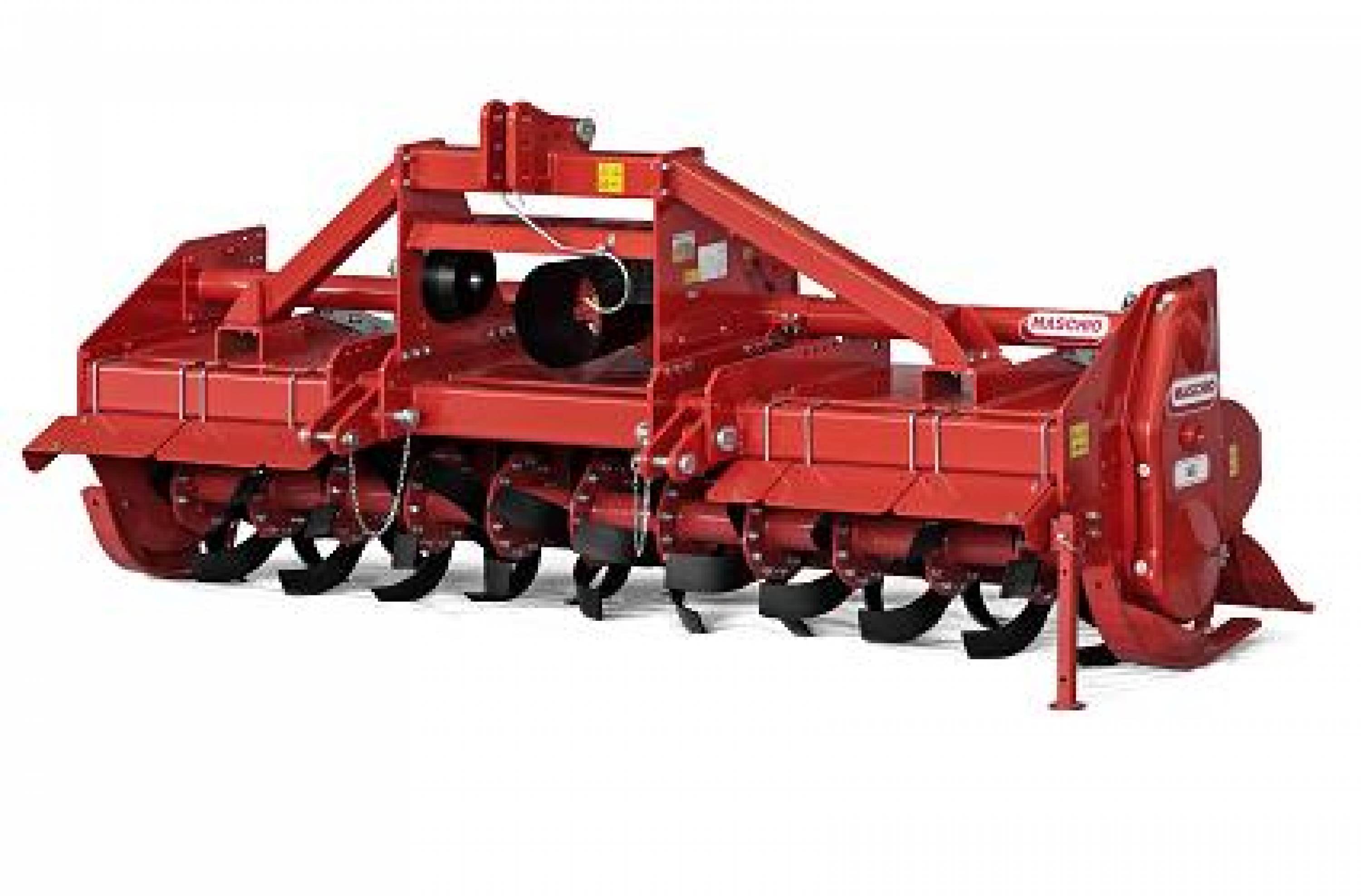

SC Series - Rotary Hoe - 90-170 HP
Product Ref: p2-46
SC Model
MULTISPEED GEARBOX
(90-170 HP)
(90-170 HP)
Rotary tiller intended for large farms and contractors. This is a large rotary tiller designed to work in particularly heavy conditions. Its new mechanical structure and a wide choice of accessories allow it to achieve excellent results on any type of ground.
Features:
- 540/1000 rpm PTO gearbox
- Rotor revolutions PTO 540 rpm (3s): 133-162-220
- Rotor revolutions PTO 1000 rpm (3s): 181-246-300
- PTO shaft with slip clutch(1" 3/8 Z6 tractor side yoke)
- Side gears drive in oil bath
- Universal three-point hitch, cat. II^
- Swinging front hitches
- Rear PTO
- 6 blades per flange (side blades are always mounted inwards)

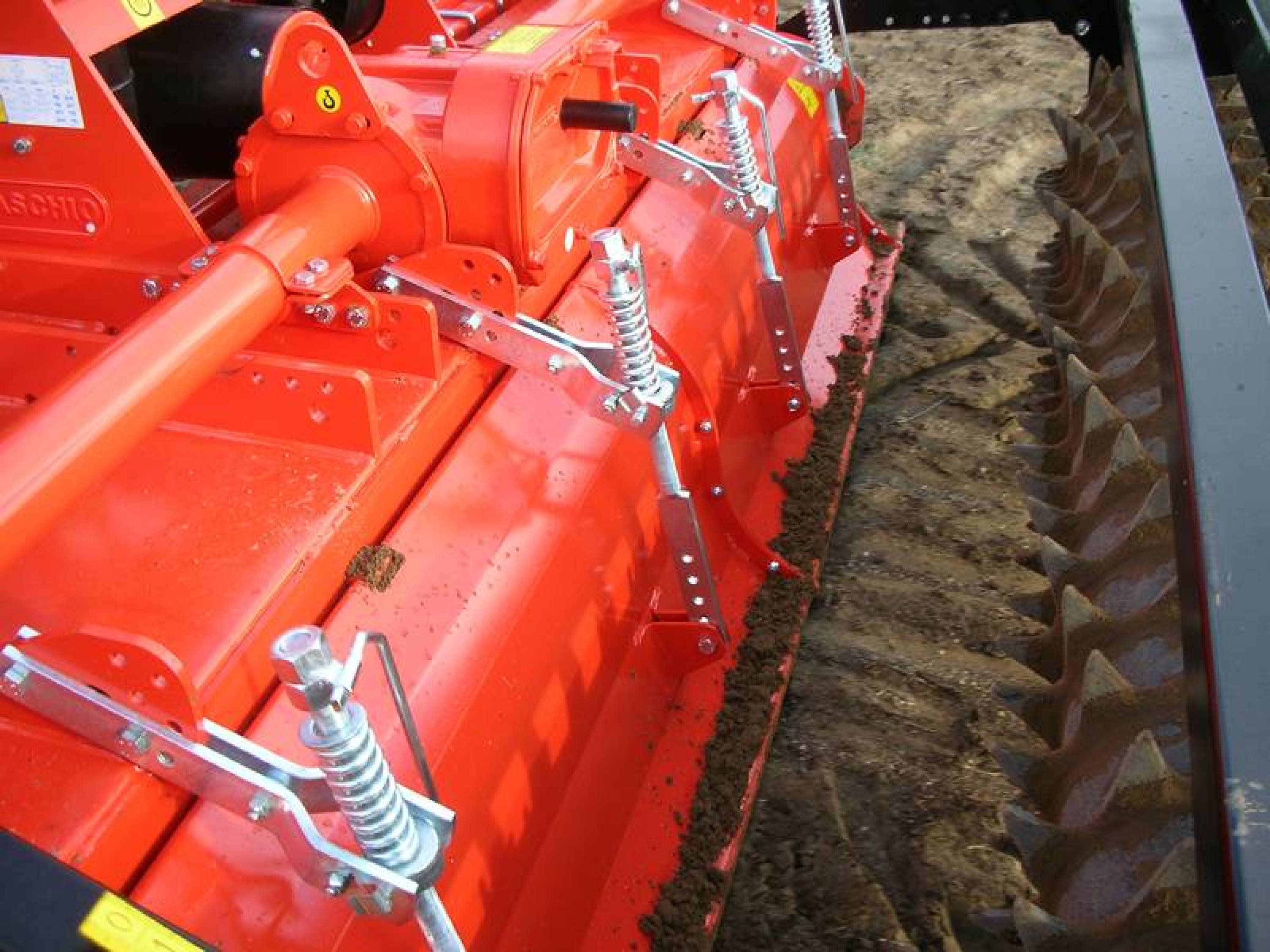

- Bonnet spring adjusters
- Pair of skids
- Heavy-duty barrel type bearings
- "Duo cone" waterproof sealings, oil bath lubrication
- Third point linkages standard on 280 and wider versions
- «CE» safety guards
- Version with Ø 570 mm rotor available upon request
- Version with outwards mounted side blades available upon request
Specifications:
| Model | 300 |
| Working Width (cm) | 310 |
| Max Working Depth (cm) | 28 |
| Number of Blades | 72 |
| Gearbox Max (hp) | 170 |
* Available with optional Cage Roller
* Other sizes available on special order
